XCD2 Multi-Axis Controller

Description

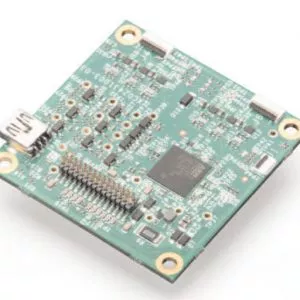

XCD2 Multi axis amplifier & control board is a dual axis OEM amplifier and control board designed for applications using the Edge & Edge-4X motors.

Initial applications can pursue feasibility with our Evaluation Kit that has board level components that serves as a dual axis controller and can support a mixture of motor configurations. This can be a mixture of multiple Edge motors or multiple Edge-4X motors per axis. The XCD2 also supports Nanomotion’s gyro input for dual axis stabilization. The XCD2 is programmed via IIC and can support quadrature encoder input as well as BiSS.

OEM applications can be supported with either an XCD2 chip level solution that is integrated on customer boards, based on using our Reference Design for the processor and drive components.

Nanomotion can also support OEM applications with a custom board configuration, based on configuring single and multi-axis drive/control boards to a customer specification.
