Industry Focus: The role of precision motion in Microscopy
Emerging applications in Life Science & Healthcare continue to represent a significant portion of the growth in the Microscopy market. The regenerative medicine industry, along with Optogenetics are utilizing new microscope platforms to be able to visualize, diagnose, and develop drugs/treatments at an increasing rate.
Regenerative medicine focuses on the generation and use of therapeutic stem cells and skin cells, as well as tissue/tissue engineering for the production of functional organs. Optogenetics uses light as a stimulus to control and monitor the activities of individual neurons in living tissue.
As the use of traditional optical microscopes have become limiting, applications in Digital Microscopy, Light Sheet Microscopy, Confocal Microscopy and others are incorporating precision motion systems to address new requirements. Higher resolution, increased magnification and other advanced features are being developed, based on the performance capabilities of precision motion control systems.
The ability to develop compact motion systems that can support an open frame design with embedded capabilities such as backlights and incubators are supporting a new generation of tabletop instruments.
The ability to develop compact motion systems that can support an open frame design with embedded capabilities such as backlights and incubators are supporting a new generation of tabletop instruments.
- Rapid move and settle for image acquisition
- Rapid move and settle for image acquisition
- Slow speed control down to hundreds of nanometers/sec for live cell tracking

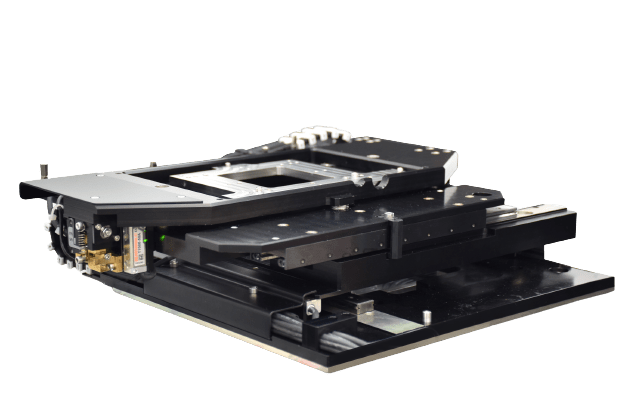

Nanomotion designs and manufactures OEM Microscope stage configurations providing XY motion, rapid Z axis focus for managing cell terrain and integrated XYZ-Tip-Tilt for leveling, focusing and scanning. Our ability to integrate our stages with our high performance motion controls allows us to reach a wide range of motion performance in a compact form factor.
Nanomotion has stage solutions for:
- Confocal Microscopes
- Digital Microscopes
- Raman Microscopes
- Optical Microscopes
- Scanning Electron Microscopes
- Scanning Probe and Atomic Force Microscopes
- Transmission Electron Microscopes
- Near-Field Scanning Optical Microscopes
- X-Ray Microscopes
- And others….
When disaster strikes, natural or man-made…
When borders need monitoring…
When search & rescue is required for missing persons…
Nanomotion’s Velox is providing unmatched visibility from above and within, to drone operators, based on Panoramic Scene Capture of (6) Full FOV/sec, with a user selectable matrix of N*M FOVs
Disasters, such as the collapse of a multi-story structure occurs, require emergency ground personnel rely on drones to perform search and rescue. As structures are not safe for ground personnel to enter, drones are deployed with both day & thermal imaging capability to search for survivors and other potential threats.
Environmental disasters, such as a Tsunami, Tornado, or Earthquake occurs, dictate the use of drones for providing essential visibility to identify victims, directing ground support to appropriate areas.
Nanomotion’s Velox provides unmatched performance for wide area assessment & terrain dominance based on its Panoramic capability and user configurable matrix. The Velox is gyro-stabilized so the EOIR cameras provide clear imagery, stabilizing to better than 80µradians.
Velox’s Wide Area Terrain Dominance is supporting applications in:
Border Protection
- Search & Rescue
- Security & Surveillance
- Traffic Monitoring
- Precision Agriculture
Nanomotion’s Velox – Two Axis Gyro Stabilized Payload for day and night surveillance
Velox carries a 12M pixel visible camera and an uncooled 640 x 512 uncooled IR camera.
Velox is controlled by Mavlink commands via Nvidia NX platform.
230°/sec angular velocity
Velox supports Video Output of:
- EO Camera – MIPI CSII-2 6Gb (4 Lane)
- IR Camera – USB2 (standard UVC)
Velox measures 71mm in diameter x 130mm high, weighing <430g.
Dynamic range of travel is ±174° Azimuth and -30° to +110° Elevation
Come See Velox Panoramic capabilities on display at Commercial UAV Expo. Las Vegas, September 5th through 7th, booth 1017. Or, contact Nanomotion for a demonstration.
Related Videos
Come see Nanomotion’s technology at:
For more information, please contact Nanomotion by email,
call +1 (631) 585-3000, or visit our website.
Nanomotion’s Technology
Nanomotion’s patented Ultrasonic Standing Wave motors provide unlimited linear and rotary motion.
