- Exceptionally compact mounting
- 12Vdc supply input
- Drives up to 4 HR motor elements
- Cable length up to 20m
- Over current and over voltage protection
XCDX5 Motion Controller

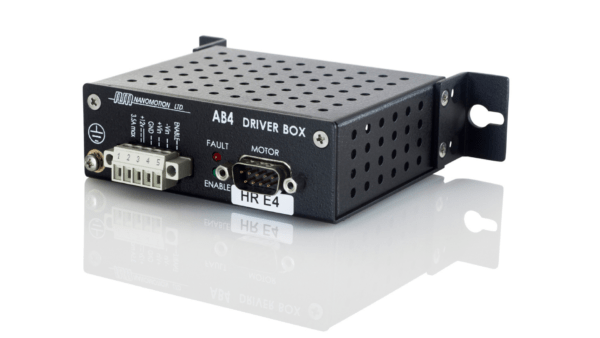

The AB4 amplifier offers the same performance as the AB1A, in a
reduced package. The AB4 operates off of 12Vdc supply input and can
drive up to 4 HR motor elements total, either (1) 4 element HR motor, or
multiple HR motors totaling 4 elements.
The AB4 is the smallest standard motor amplifier and is provided with a 26-pin rear
connector (26 pin, two row header). This connector provides access to all functionality (motor,
power inputs, limits, and I/O functions), making it easy to integrate. Additional motor and power
inputs are available with standard connections on the front.
The AB4 amplifier offers the same performance as the AB1A, in a
reduced package. The AB4 operates off of 12Vdc supply input and can
drive up to 4 HR motor elements total, either (1) 4 element HR motor, or
multiple HR motors totaling 4 elements.
The AB4 is the smallest standard motor amplifier and is provided with a 26-pin rear
connector (26 pin, two row header). This connector provides access to all functionality (motor,
power inputs, limits, and I/O functions), making it easy to integrate. Additional motor and power
inputs are available with standard connections on the front.
Environmental
Operating Temperature: 0 to 50°C
Storage: -40°C to +70°C
Humidity: up to 80%, non condensing
Electrical
Power Supply Input: +12 Vdc ±5% (stabilized)
Max Motor Output Voltage: 280 Vrms
Power Consumption without Load: +12 Vdc/300 mA
Power Consumption with Max Load: +12 Vdc/3.5A
