The RR08 is RoHS Compliant, utilizing a silent, miniature piezo actuator in an 8mm x 20mm package including the drive electronics. The RS08 is designed to work from a 3.3v battery and supports travel ranges from 35° to 120°. Shutter blades can vary in size and material, up to a 25mm diameter paddle. Using Nanomotion’s proprietary feedback system, the shutter is fully operational as a closed loop device, stopping on electrical limits to avoid any noise from a mechanical hardstop.
120 deg travel, 35 deg travel, 40 deg travel, 45 deg travel, 50 deg travel, 55 deg travel, 70 deg travel, 90 deg travel

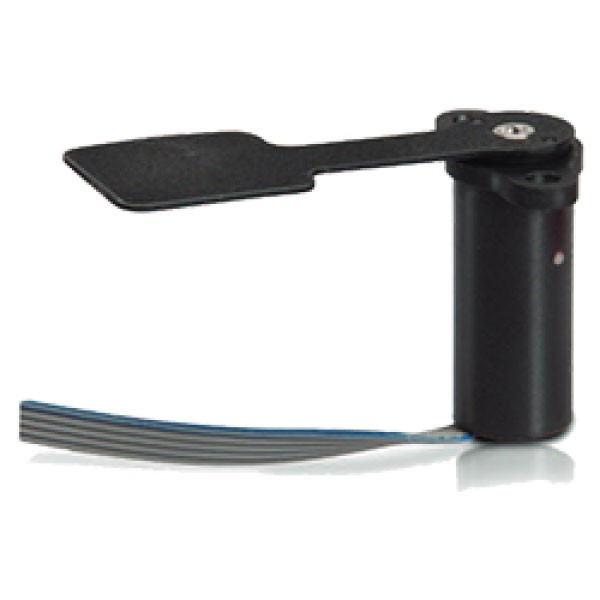

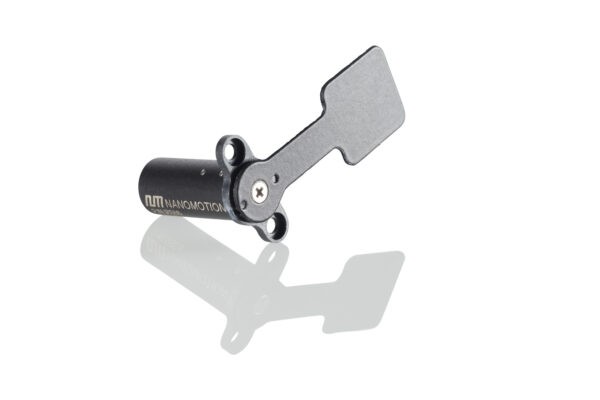

RR08 Rotary Shutter
