Airborne Auto Focus Axis

Category

Nanomotion’s

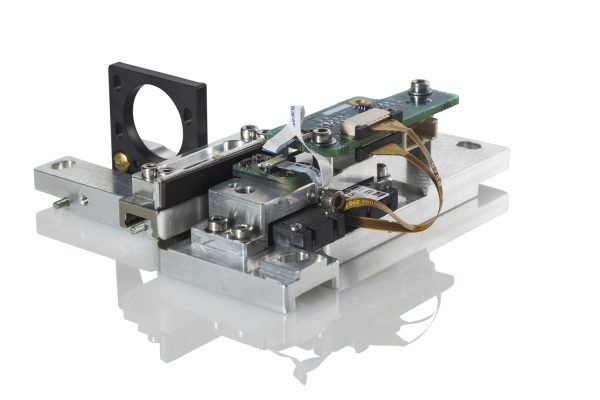

Flight rated Auto-Focus Stage
Airborne Focus Module: capable of moving a lens over 20mm of travel with 0.24µm resolution. This focus module supports a 26g moving mass, exposed to 14.5g vibration at 15Hz (up to 2000Hz), in the direction of motion. Dual Edge-4X motors are used to provide the necessary dynamic driving force and static holding force, to meet this requirement

Description

Nanomotion’s

Flight rated Auto-Focus Stage
Airborne Focus Module: capable of moving a lens over 20mm of travel with 0.24µm resolution. This focus module supports a 26g moving mass, exposed to 14.5g vibration at 15Hz (up to 2000Hz), in the direction of motion. Dual Edge-4X motors are used to provide the necessary dynamic driving force and static holding force, to meet this requirement
